When it comes to slope stabilization and soil retention, two of the most widely used solutions are gabion retaining walls and concrete retaining walls.
But which one is better in terms of cost, durability, installation, and environmental impact?
In this guide, we’ll compare gabion vs concrete retaining wall in detail to help contractors, engineers, and investors make the right choice.

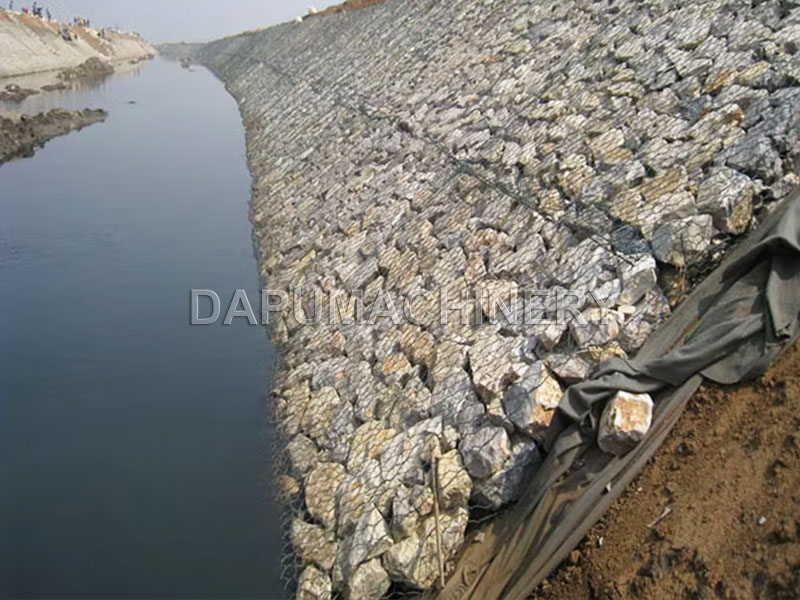

What Is a Gabion Retaining Wall?
A gabion wall is made of wire mesh baskets filled with stones, rocks, or recycled materials. These baskets are stacked to form a flexible and permeable structure.
Common applications:
- Riverbank protection
- Slope stabilization
- Coastal engineering
- Road construction

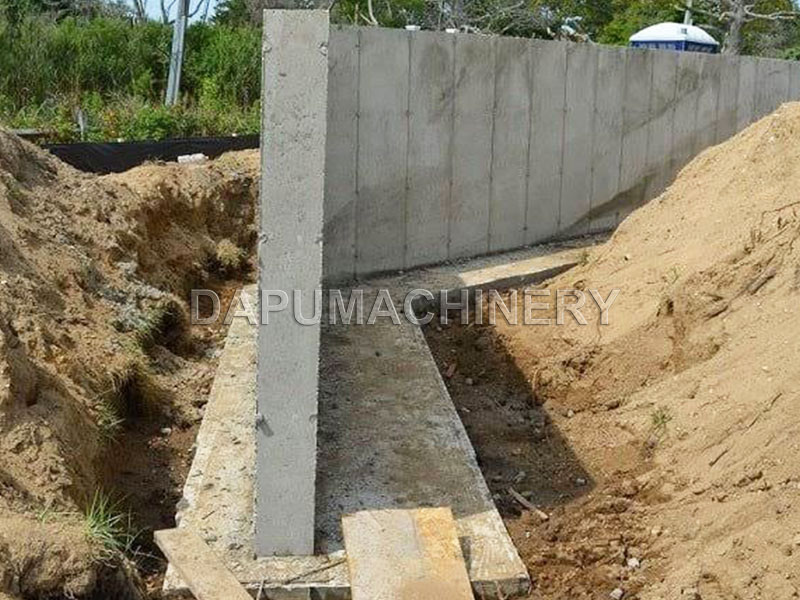

What Is a Concrete Retaining Wall?
A concrete retaining wall is a rigid structure made from reinforced concrete designed to hold back soil.
Common types:
- Gravity wall
- Cantilever wall
- Counterfort wall
Gabion vs Concrete Retaining Wall
| Factor |
Gabion Wall |
Concrete Wall |
| Cost |
Lower |
Higher |
| Installation |
Fast & simple |
Complex |
| Drainage |
Excellent (permeable) |
Poor (needs drainage system) |
| Durability |
High (flexible) |
High but rigid |
| Maintenance |
Low |
Medium |
| Environmental |
Eco-friendly |
High carbon footprint |
| Lifespan |
50–100 years |
50–75 years |
1. Cost Comparison: Which Is More Affordable?
Gabion walls are generally 30%–50% cheaper than concrete retaining walls.
Why gabion is cheaper:
- No need for foundation reinforcement
- Lower labor cost
- Local stone can be used as filler
Concrete walls require:
- Formwork
- Reinforcement steel
- Skilled labor
Winner: Gabion Wall
2. Installation: Speed and Complexity
Gabion walls are much easier and faster to install.
Gabion:
- No heavy machinery required
- Can be installed in remote areas
- Minimal technical skills
Concrete:
- Requires curing time
- Needs skilled engineers
- Weather dependent
Winner: Gabion Wall
3. Drainage Performance (Critical Factor )
One of the biggest advantages of gabion walls is natural drainage.
Gabion:
- Water flows freely through stones
- No hydrostatic pressure
Concrete:
- Needs drainage pipes
- Risk of water pressure buildup
Winner: Gabion Wall
4. Structural Strength & Durability
Concrete:
- Extremely strong under compression
- Suitable for heavy load structures
Gabion:
- Flexible structure adapts to ground movement
- Resistant to cracking
Winner: Tie (depends on application)
5. Environmental Impact
Gabion walls are significantly more eco-friendly.
Gabion:
- Uses natural stones
- Promotes vegetation growth
- Low carbon footprint
Concrete:
- High CO₂ emissions
- Not environmentally friendly
Winner: Gabion Wall
6. Aesthetics and Design
Gabion:
- Natural appearance
- Blends with the landscape
Concrete:
- Industrial look
- Can be improved with finishing
Winner: Gabion Wall
7. When to Choose Gabion Walls?
Choose a gabion if you need:
- Riverbank protection
- Slope stabilization
- Fast construction
- Low-cost solution
- Eco-friendly project
8. When to Choose Concrete Walls?
Choose concrete if:
- Heavy structural load is required
- Space is limited
- Urban infrastructure project
- Long vertical walls
How Gabion Walls Are Manufactured
Gabion walls depend on high-quality mesh produced by gabion mesh machines.
Production process:
- Wire drawing
- Galvanizing or PVC coating
- Double-twist hexagonal weaving
- Cutting and folding
Why Investing in a Gabion Mesh Machine Is a Smart Choice
With global demand for erosion control and infrastructure increasing, gabion solutions are becoming more popular.
A gabion mesh machine allows manufacturers to:
- Produce high-demand products
- Enter infrastructure markets
- Reduce production costs
- Supply large-scale projects
Conclusion: Which One Is Better?
Gabion walls win in most scenarios due to:
- Lower cost
- Better drainage
- Eco-friendliness
- Faster installation
Concrete walls are still necessary for:
- Heavy-duty engineering
- Space-limited structures
