Automatic fence mesh bending and welding machine
Description of automatic fence mesh bending and welding machine

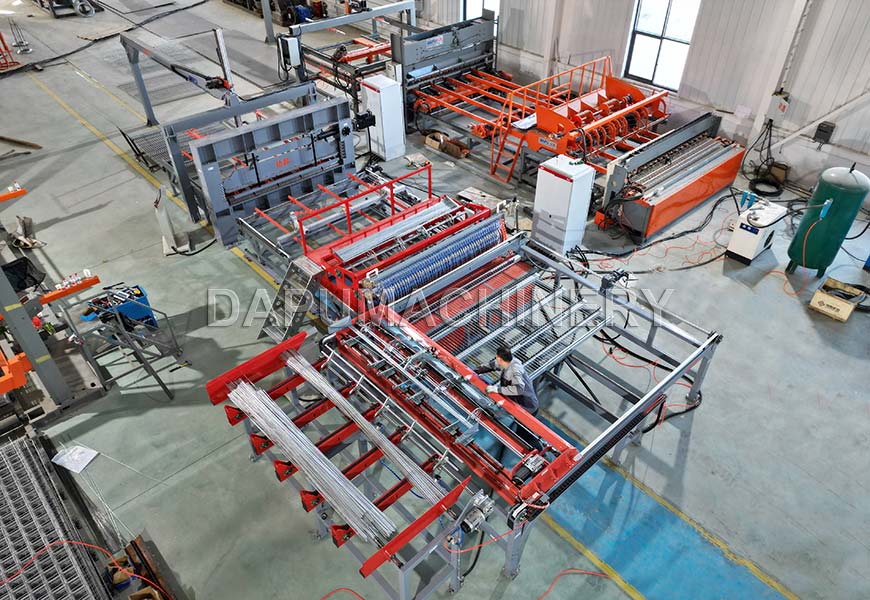

Compared to traditional mechanical fence welding machines, the fully automatic bending fence welding machine forms a complete 3D fence production line. From raw material feeding, welding, finished mesh conveying and bending, to final palletizing, every process is autonomously completed by the machine. The entire production line requires only 1-2 operators for supervision and control. It saves significant time and labor, offering a smarter and more efficient solution for your production needs.
Specification of automatic fence mesh bending and welding machine
| Model | DP-FP-2500AN |
| Line wire diameter | 3-6mm |
| Cross wire diameter | 3-6mm |
| Line wire space | 50, 100, 150, 200mm |
| Cross wire space | 50-300mm |
| Mesh width | Max.2.5m |
| Mesh length | Max.3m |
| Welding electrodes | 51pcs |
| Welding speed | 60 times/min |
| Welding transformers | 150kva*8pcs |
| Line wire feeding | Auto line wire feeder |
| Cross wire feeding | Auto cross wire feeder |
| Production capacity | 480pcs mesh-8 hours |
Video of automatic fence mesh bending and welding machine
Advantages of automatic fence mesh bending and welding machine
(1) Servo Motor Control for Enhanced Precision:

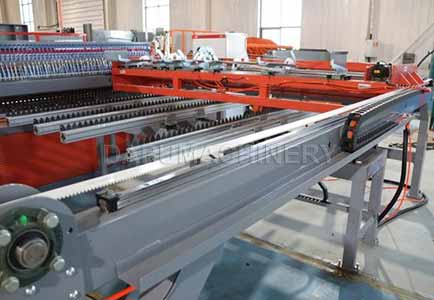

The line wire feed hopper, with a 1T raw material capacity, is driven by an Inovance servo motor via a synchronous belt. This ensures accurate and reliable wire placement.
Stepper motors control the drop-feed of warp wires, precisely synchronizing with the machine's operating speed for optimal alignment.

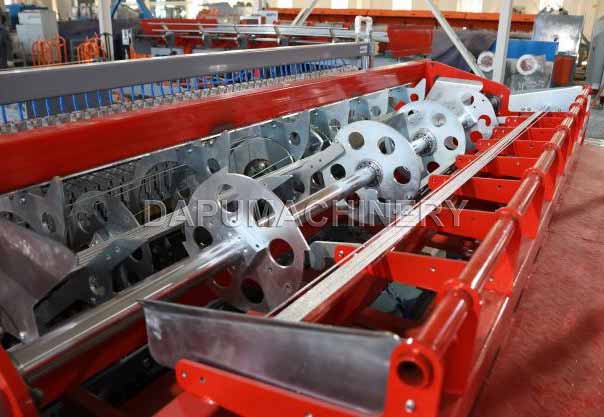

The cross wire system also utilizes a 1T-capacity feeding hopper, minimizing production interruptions caused by frequent material replenishment.
(2) Durable Brand-Name Components for Long Life and Stable Operation:

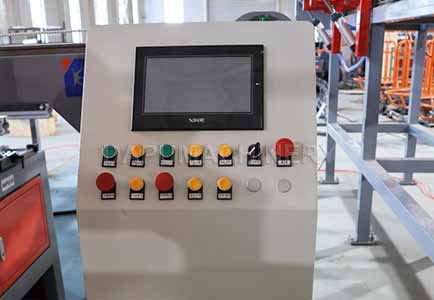

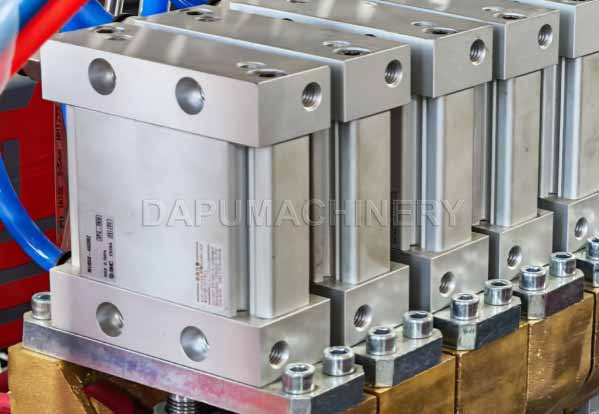

For the most critical welding section, we employ original Japanese SMC cylinders. Their exceptionally smooth up-and-down motion eliminates any jerking or sticking during welding. Welding pressure can be precisely set via the touchscreen, ensuring both extraordinarily long service life and consistent, high-quality welded mesh panels.

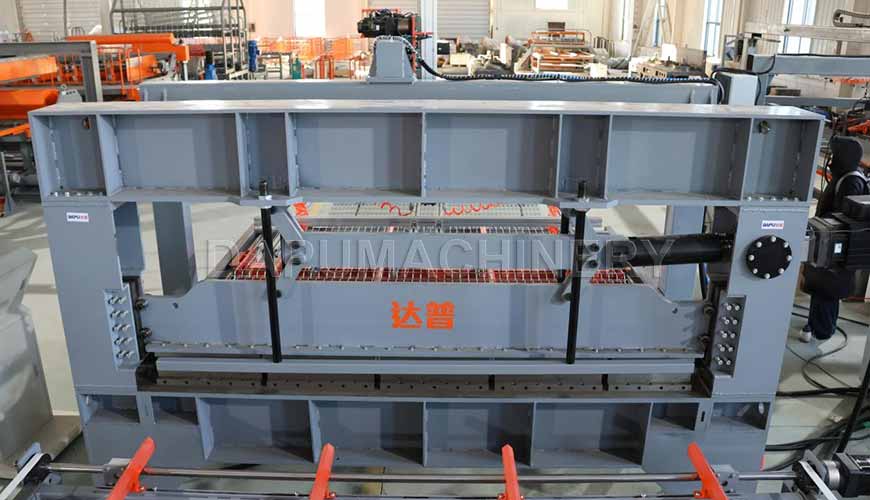

(3) German-Designed Bender for High Speed:
After welding is completed, two wire mesh pulling carts, controlled by Inovance servo motors, transport the panel to the bender. Compared to traditional hydraulic benders, our new servo-driven model can complete a bending cycle in just 4 seconds. The dies are made of wear-resistant material W14Cr4VMnRE, capable of enduring high-intensity, continuous operation.
(4) Fully Automated Production Process, Only Final Packaging Required:
This integrated machine line automates the entire process — from material feeding and welding to bending and stacking. All you need to do is place a wooden pallet in position. The machine will then automatically stack the finished mesh panels onto it. Once a stack reaches the preset quantity, it is ready for you to secure and transport via forklift to storage.

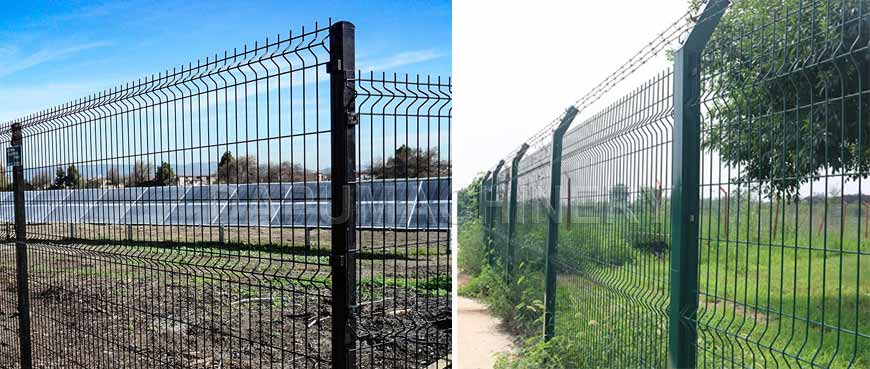

3D fence panel application:
3D fencing (also known as V-shaped bending fencing or 3D security fencing) is widely used in factory boundary protection fencing, logistics and warehousing center fencing, temporary fencing, highway fencing, private residential fencing, school playground fencing, military, prisons, and other fields due to its high-strength protection, aesthetics, and corrosion resistance, providing an attractive and transparent boundary barrier.
Success Story: DAPU Automatic Fence Mesh Bending and Welding Machine successfully operated in Romania
Our Romania customer ordered one set full automatic fence welding machine from us. And in November, they come to our factory and inspect the welding machine. Before this set welding machine, they already bought one set chain link fence machine from us. We talked about some problems during machine operate. Solve the problem which trouble them for some days.
The welding machine will be shipped to their port at the end of Jan.2026. Then we will send our best technician to their factory to help them install and debug the machine.
Recently, more and more customer who send us inquiry about this fully model welding machine. If you also have interest in this machine, please send us inquiry! We are willing to provide our help!
Sales-after service
Welcome to the DAPU Factory
We welcome global customers to schedule a visit to DAPU's modern factory. We offer comprehensive reception and inspection services.
You can initiate the inspection process before equipment delivery to ensure that the fully automatic fence mesh welding machine you receive fully meets your standards.
Providing Guidance Documents
DAPU provides operation manuals, installation guides, installation videos, and commissioning videos for rebar mesh welding machines, enabling customers to learn how to operate the fully automatic fence mesh bending and welding machine.
Overseas Installation and Commissioning Services
DAPU will dispatch technicians to customer factories for installation and commissioning, train workshop workers to operate the equipment proficiently, and quickly master daily maintenance skills.
Regular Overseas Visits
DAPU's highly skilled engineering team visits customer factories overseas annually to maintain and repair equipment, extending equipment lifespan.
Rapid Parts Response
We have a professional parts inventory system, enabling rapid response to parts requests within 24 hours, minimizing downtime, and supporting global customers.
Certification
DAPU wire mesh welding machines are not merely high-performance fence mesh production equipment, but also a showcase of innovative technology. We hold CE certification and ISO quality management system certification, meeting stringent European standards while adhering to the highest international quality management standards. Furthermore, our automatic fence mesh welding machines have been applied for design patents and other technical patents: Patent for a Horizontal Wire Trimming Device, Patent for a Pneumatic Diameter Wire Tightening Device, and Patent certificate for a Welding Electrode Single Circuit Mechanism, ensuring you purchase the most competitive and reliable fence mesh welding solution on the market.
Exhibition
DAPU's active presence at global trade shows showcases our strength as a leading wire mesh machinery manufacturer in China.
At the China Import and Export Fair (Canton Fair), we are the only qualified manufacturer in Hebei Province, China's wire mesh machinery industry, to participate twice a year, in both the spring and autumn editions. This participation symbolizes the nation's recognition of DAPU's product quality, export volume, and brand reputation.
In addition, DAPU participates in international trade shows annually, currently exhibiting in over 12 international markets, including the United States, Mexico, Brazil, Germany, the UAE (Dubai), Saudi Arabia, Egypt, India, Turkey, Russia, Indonesia, and Thailand, covering the most influential trade shows in the construction, metal processing, and wire industries.
FAQ
1. Can the automatic fence bending and welding machine bend four times or three times?
Yes, the mesh bends can be set on the touching screen. But pay attention: the number of bends in the wire mesh needs to correspond to the mesh opening size.
2. Can the automatic fence bending and welding machine mesh opening size infinitely variable adjustment? Like 55mm, 60mm?
The mesh opening size should be multiplier adjustment. The line wire holding rack is pre-designed, so you can change line wire space such as 50mm, 100mm, 150mm and so on.
3. How to install and operate the automatic fence bending and welding machine, can I achieve by myself？
If it's your first time to use the machine, we suggest send our technician to your factory. Our technician have sufficient experience on installing and debugging machine. Besides, they can train your worker, so machine can work smoothly after technician leave as well.
4. Which is the consumable parts? How can I get them after the automatic fence bending and welding machine has been used for a period of time?
We will equip some consumable parts with the machine, such as the welding electrodes, sensor switchs and so on. You also can contact us to buy extra spare parts in the future. We will delivery it to you by air, 3-5 days you will receive it, very convenient.
