Straight Line Wire Drawing Machine

Short Description:

Model No.: LZ-560


Straight Line wire drawing machine, as a part of the steel wire rod as raw material and reduces its diameter as much as you need; If you can’t find the suitable wire diameter in your local market, you can use this machine to make different diameters of black wire or GI wire according to different applications; We can design the wire drawing machine according to your request about input wire diameter and output wire diameter; Also our wire drawing machine can produce round wire to ribbed wire.

Product Detail

Product Tags

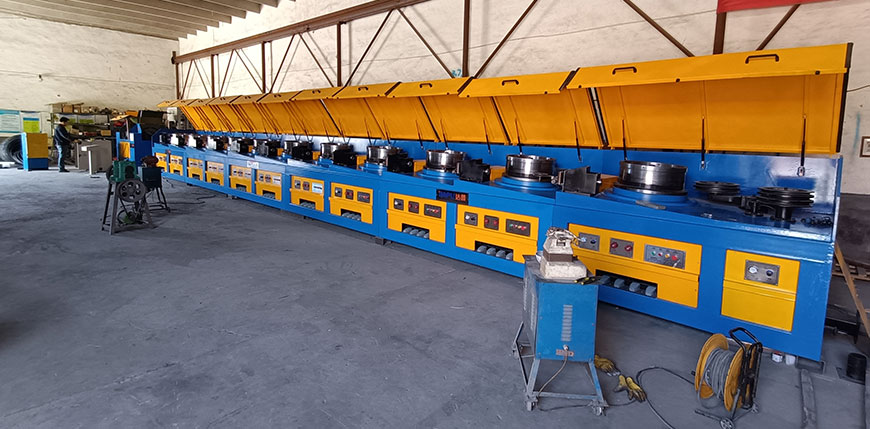

Straight line wire drawing machine

· Highly output

· Long service life

· Running stable

· User friendly

DAPU wire drawing machine, Is a best-selling hot product, enjoying high praise from customers;

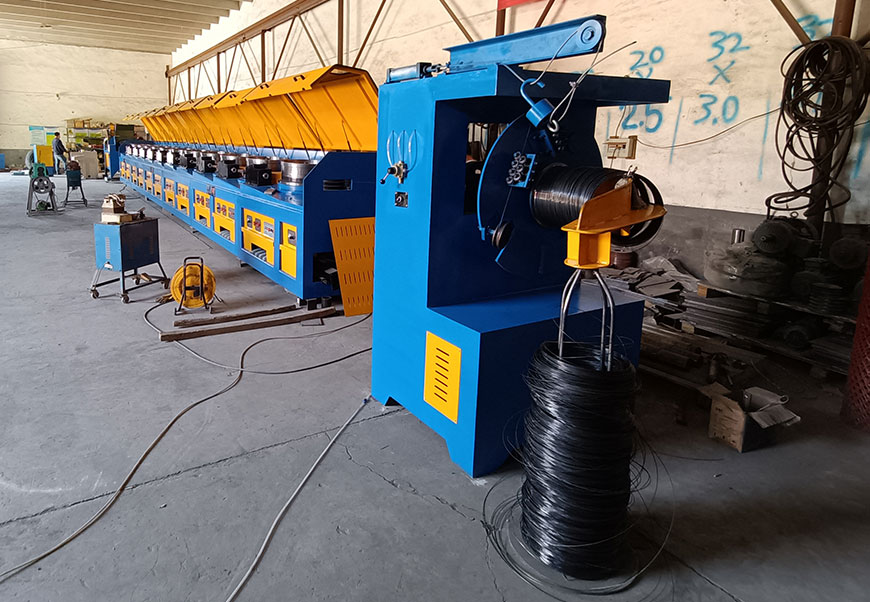

Raw material normally is SAE1006/ 1008/ 1010..., Also can be customized as your needs; complete line including wire payoff- peeling device- sand belt machine (if required)-drawing machine- wire take up machine;

Input wire diameter can be Max. 6.5mm, output wire diameter can be Min. 1.5mm through DAPU straight line wire drawing machine, if you need to make Min. 0.6mm or 0.8mm, for making binding wire, also we can supply suitable solution for you;

DAPU wire drawing machine with highly output, stable quality, running years without after sale troubles, and the control system was designed user friendly, easily operate;

DAPU wire drawing machine equipped POLYCRYSTALLINE DIAMOND drawing dies, service life can be 150-200T;



Machine Advantages:

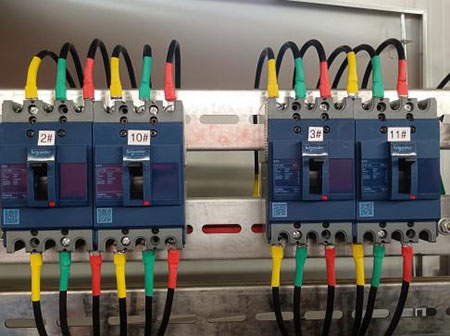

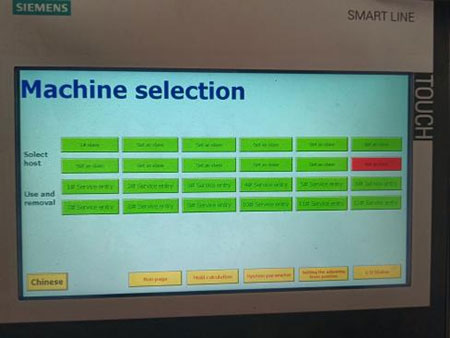

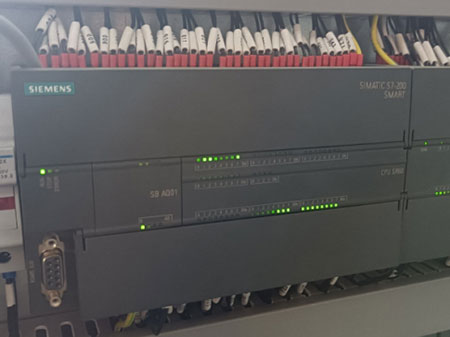

Machine equipped Siemens PLC+Siemens touch screen, Schneider electronics;

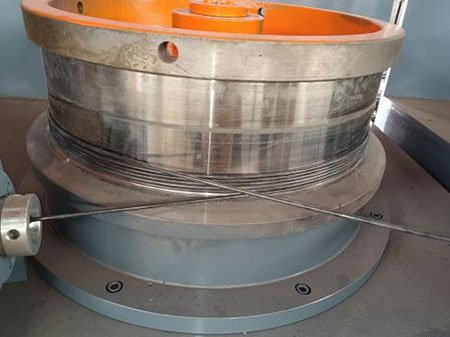

Tungsten Carbide Coated;

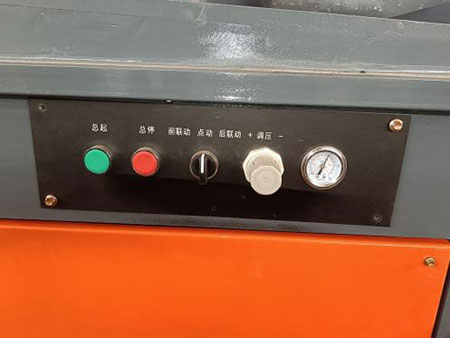

-Convenient control system, easily control the water volume and air volume;

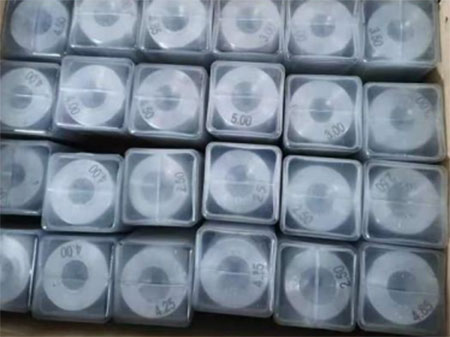

POLYCRYSTALLINE DIAMOND drawing dies, service life 150-200T




Machine Parameter:



 Raw material

 low-carbon steel wire (SAE1006/ 1008.)

 Number of blocks

Depend on your specifications

 Wire diameter

 Inlet Max. 6.5mm and outlet Min. 1.8mm

 Compression (%)

 Min. 22.7

 Strength tensile (Mp)

 Max. 708

 Reduction ration

 Max. 55




 Max. 16m/s

 Inverter brand

 INVT inverter, also can be replace as ABB if you required

 Dia. of pot




 Unit Weight

 1800 KGS

Accessory equipment:

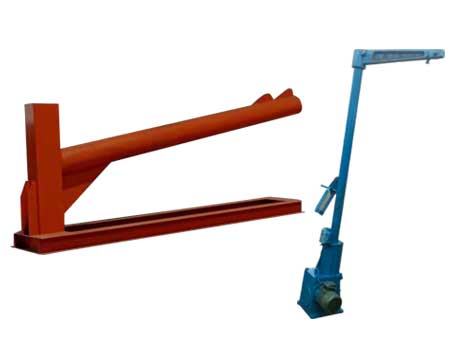

wire payoff

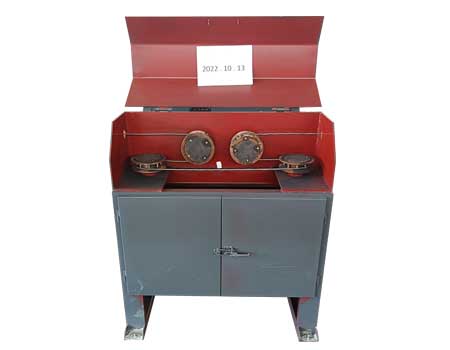

peeling machine

sand belt machine

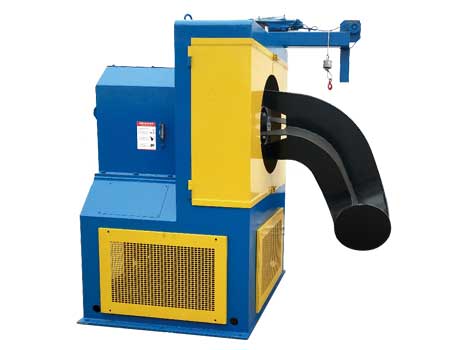

elephant wire take up machine

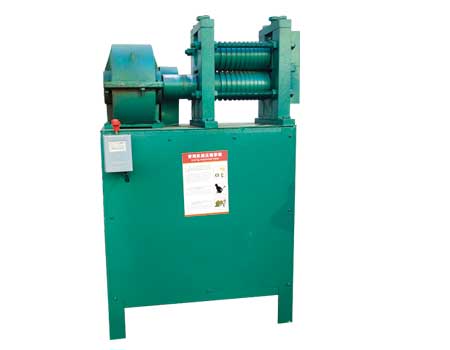

head pointing machine

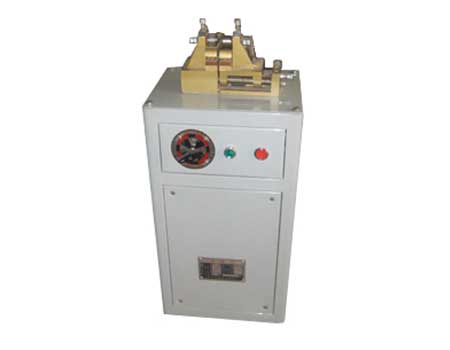

butt welder




Wire drawing machine videos:

Sales-after service


We will provide a full set of installation videos about the concertina razor barbed wire making machine



Provide the layout and electrical diagram of the concertina barbed wire production line


Provide installation instruction and manual for automatic security razor wire machine


Answer every question online 24 hours a day and talk to professional engineers


Technical personnel go abroad to install and debug razor barbed tape machine and train workers

 Equipment maintenance

 Equipment-Maintenance   A. Lubrication liquid is added regularly. B. Checking electric cable connection every month.




Q: how much block do i need?

A: depend on your wire material, input wire diameter and output wire diameter;

Q: Do you have water type drawing machine?

A: Yes, we can provide water tank drawing machine as your requirement;

Q: Can you make ribbed from drawing machine?

A: Yes, we have ribbed device, which can help you get ribs wire after drawing;
