Welded Wire Mesh Machine

Short Description:

Model No.: DP-DNW-1,2,3,4


The Auto welded wire mesh making machine is suitable for the manufacture of light welded rolled mesh. Providing the highest product quality and performance for the fine welded mesh (0.4 – 3mm).

Welded wire mesh machine, also called Welded roll mesh machine, Steel mesh machine, Roll mesh welding machine, is used to make construction mesh, wall mesh, animal cage, mining, etc. Low noise, stable working, easier operation, and electro-magnetism speed adjustment.

  • Mesh type: Rolled mesh
  • Wire diameter: 0.4-3mm
  • Mesh hole size: 1/2”, 1”, 2”, 12.5mm, 25mm, 50mm, 100mm, 150mm
  • Wire material: Galvanized wire, black wire, stainless steel wire.
  • Product Detail


    Product Tags

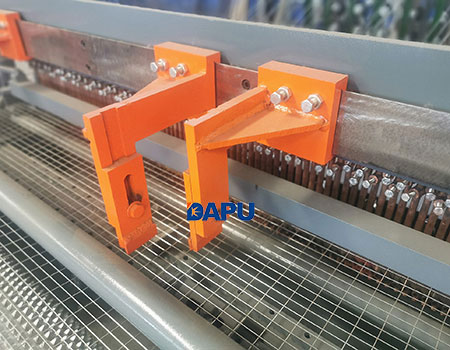

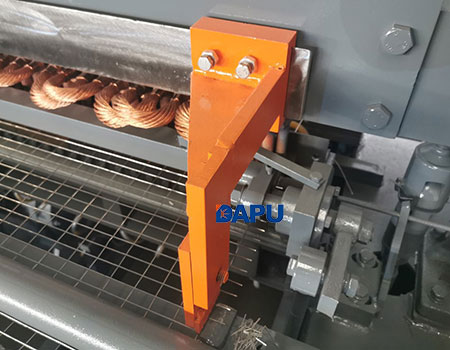

    Our Automatic Welded Wire Mesh Machine is equipped with an Automatic Cross-wire feeding system, Auto coiling/rolling system, and Auto roll-out system. Equipped with middle cutter and side cutters to make two mesh rolls one time. Separate control technology, reduce the impact current and guarantee welding solid.

    The Panasonic 4.5KW servo driver with rubber shaft is more accurate and stable. PLC (Mitsubishi-Japan) control system with touch screen (Weview-Taiwan brand) input, which makes the operation more intelligent and convenient.

    1.Technical Parameter:

    Model DP-DNW-1 DP-DNW-2 DP-DNW-3 DP-DNW-4
    Wire diameter 0.4-0.65mm 0.65-2mm 1.0-2.8mm 1.6-3mm
    Line wire pitch (6.25mm,12.5mm) (12.5mm,25mm,50mm) (25-150mm) 25mm, 30mm
    Cross wire pitch (6.25mm,12.5mm) (12.5mm,25mm,50mm) (12.5-150mm) Min.25mm
    Mesh width 0.9m, 1.2m 1.2m, 1.5m, 2m 1.5m, 2m, 2.5m Max. 2m

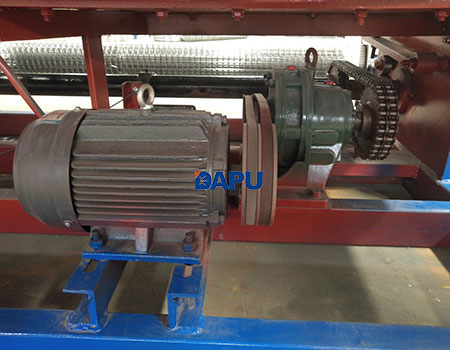

    Main motor 2.2kw 2.2kw, 4kw, 5.5kw 4kw, 5.5kw, 7.5kw 5.5kw(Panasonic)
    Welding transformer 60kva*3*4pcs 60-80kva*4/5/7pcs 80-100kva*5/7/8pcs 125KVA*6
    Welding speed Max.80times/min Max.120-180times/min Max.60-100 times/min 60-100times/min
    Weight 2T/2.5T 2.5T/3T/3/5T 3T/3.5T/4T 3.5T

    NOTE: We can customize the machine according to your requirements for wire diameter and mesh.

    2.YouTube Video

    3.Superiorities of Welded wire mesh machine

    Taiwan Weinview Touch Screen + Japan Mitsubishi PLC, easy operation.

    Cross wire feeding controlled by Servo motor, faster and more precise.

    Mesh pulling rubber rollers controlled by Delta Servo motor, working smooth.

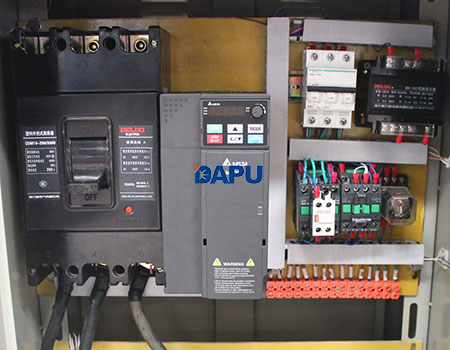

    Taiwan Delta Inverter control motor working, speed adjustable.

    Japan SMC air cylinder + Electromagnetic valve for cross wire feeding, working precise and smooth.

    Welding currency and welding time can be adjusted through Touch screen + PLC, easily.

    Mesh rolling machines can take up rolls and discharge rolls automatically.

    Both longitude wire and cross wire are fed from wire coils automatically.

    4.Finished Rolled Mesh
