Grassland Field Fence Machine

Short Description:

Model No.: CY


Hinge joint knot fence machine, also called Field fence Machine, Grassland fence machine or Cattle fence machine, Farm fence machine. The field fence machine adopts a frequency-adjustable-motor to drive the machine and uses a counter to calculate woven fence, easy operation.

Product Detail

Product Tags


Grassland Field Fence Machine

- Finished fence have a wide range of applications;

-Finished mesh is strong and durable;

-Saving material and labor cost;

 The grassland fence machine is also called field fence machine, hinge joint fence machine or cattle fence machine, farm fence machine. This machine can produce grassland fence which is widely used for preventing environmental balance, preventing landslide and used as livestock fence.

We can design the machine according to your wire diameter, mesh hole size and mesh width.


Hinge joint fence machine parameter:



Fence roll length

Max.100mtrs, popular roll length 20-50m.

Fence height

Max. 2400mm

Vertical wire space


Horizontal line spacing


Processing way

Cell is processing in height.

Inner wire diameter


Side wire diameter


Max. work efficiency

Max.60rows/min; Max. 405m/h. If weft size 150mm, roll length is 20meter/roll, our machine speed is max. 27 rolls per hour.




according to client’s voltage





Hinge joint fence machine Video:

Hinge joint fence machine advantages:

-Special hole for line wire feeding, more flexible and tidy.

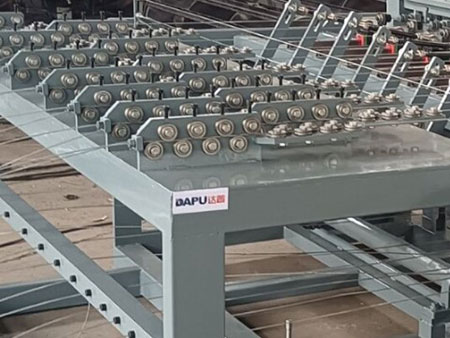

-Straightening rollers for weft wires, finished weft wire more straightened,


Instead of groove rail, we adopt linear rail to push cross wire, less resistance, moving fast.


Cutter is made of hardened mold steel, HRC60-65, life is at least one year.


Weft wire distance can be adjustable 50-500mm with the special device.

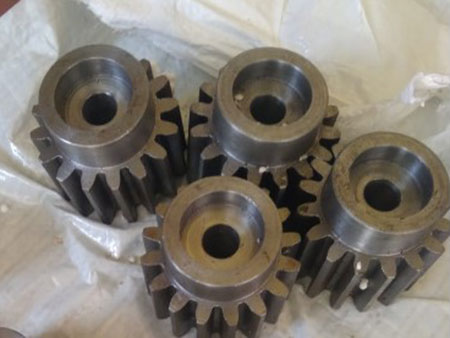

Twisted head is made of hardened mold steel, HRC28, life is at least one year.


Famous brand configuration ( Delta inverter, Schneider electrical components, Schneider switch)

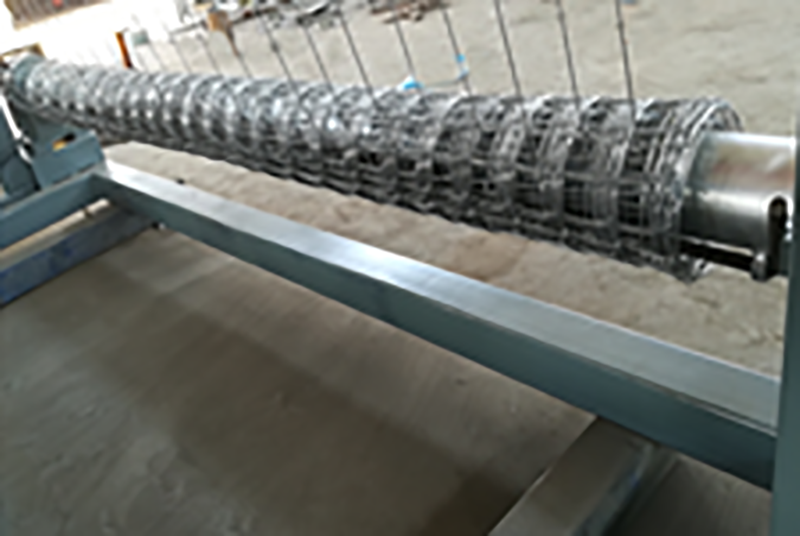

Mesh roller is easy to discharge and install.


Hinge joint fence application:

Grassland fence fences are mainly used for grassland construction in pastoral areas and can be used to enclose grasslands and implement fixed-point grazing. Facilitate the planned use of grassland resources, effectively improve grassland utilization and grazing efficiency, prevent grassland degradation, and protect the natural environment. At the same time, it is also suitable for establishing family farms, etc.

Hinge joint field fence machine consists of these wire feeding system-- weaving system-- mesh rolling system; finished mesh is Hinge joint fencing machine, always called farm fencing; used for Sheep, Deer, Goat, Chicken and Rabbits

1. How does hinge joint field fence machine work?

2. The line wire moves forward intermittently, and after the weft wire is cut, the two weft wires are wound together on the line wire to form a hinge joint. This knot acts as a hinge that gives under pressure, then springs back into shape.

3. How much area required for this machine? How much labor required?

4. This machine normally need 15*8m, 1-2 workers is ok;

5. Which country did you exported this machine to?

6. This hinge joint field fence machine, we have exported to Zambia, India, Mexico, Brazil, Samoa...etc;



Sales-after service


We will provide a full set of installation videos about the concertina razor barbed wire making machine



Provide the layout and electrical diagram of the concertina barbed wire production line


Provide installation instruction and manual for automatic security razor wire machine


Answer every question online 24 hours a day and talk to professional engineers


Technical personnel go abroad to install and debug razor barbed tape machine and train workers

 Equipment maintenance

 Equipment-Maintenance   A. Lubrication liquid is added regularly. B. Checking electric cable connection every month.


Q: How long is needed for making hinge joint field fence machine?

A: 25-30 working days after receiving your deposit;

Q: What’s your payment terms?

A: 30% TT in advance, 70% TT after inspection before loading; Or irrevocable LC at sight;
