Expanded Metal Mesh Machine
Expanded metal mesh machine
- full automatic
- high speed
- new design
- easy operation
- 30-year manufacturer experience
Expanded metal mesh machine is used topunchingthegalvanized/iron/aluminum/iron/inless steel sheet. We can supply the 6.3T, G10, 16T, 25T, 40T, 63T, 100T, 160T and 260T punching machine for making different mesh size.
DP25-6.3T
DP25-16T
DP25-25T
DP25-40T
DP25-63T/DP25-100T
DP25-160T
DP25-260T
Expanded metal mesh machine parameter
| Model | Working speed(r/min) | LWD Max.(mm) | Material thickness(mm) | Width Max(mm). | Feeding distance(mm) | Motor(KW) | Weight(T) | Dimension(m) |
| DP25-6.3 | 300 | 20 | 0.2-1.5 | 650 | 0-5 | 4 | 1.2 | 0.8*1.4*1.52 |
| DP25-16 | 260 | 30 | 0.2-1.5 | 1000 | 0-5 | 5.5 | 2.8 | 1.35*1.88*1.93 |
| DP25-25 | 260 | 30 | 0.2-1.5 | 1250 | 0-5 | 5.5 | 3.3 | 1.35*2.25*1.93 |
| DP25-40 | 110 | 80 | 0.5-2.5 | 1500 | 0-5 | 11 | 6 | 1.83*3.1*2.03 |
| DP25-63 | 75 | 120 | 0.5-3.0 | 2000 | 0-5 | 15 | 11 | 3.0*3.95*2.3 |
| DP25-100 | 60 | 180 | 0.5-5.0 | 2000 | 0-10 | 18.5 | 13 | 3.3*3.7*3.5 |
| 56 | 180 | 0.5-5.0 | 2500 | 0-10 | 22 | 14 | 3.3*4.2*2.5 | |
| DP25-160 | 55 | 200 | 0.5-6.0 | 2000 | 0-10 | 30 | 16 | 3.55*3.8*2.65 |
| 45 | 200 | 0.5-5.0 | 2500 | 0-10 | 30 | 18 | 3.55*4.3*2.65 | |
| 45 | 200 | 0.5-4.0 | 3200 | 0-10 | 30 | 20 | 3.55*5.0*2.65 | |
| DP25-260 | 32 | 200 | 1-8 | 2000 | 0-10 | 55 | 26 | 3.7*4.4*2.7 |
| 32 | 200 | 1-8 | 2500 | 0-10 | 55 | 28 | 3.7*4.9*2.7 | |
| G10 | 450 | 12 | 0.05-0.8 | 650 | 0-5 | 5.5 | 3 | 1.52*0.65*1.5 |
Expanded metal mesh machine advantages:
| 1. PLC+text/touch screen, Schneider electric parts, easy to operate. | 2. Pneumatic clutch device, machine working more stable. |
 |
 |

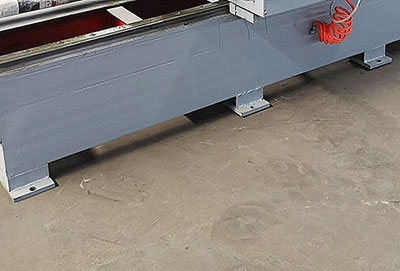

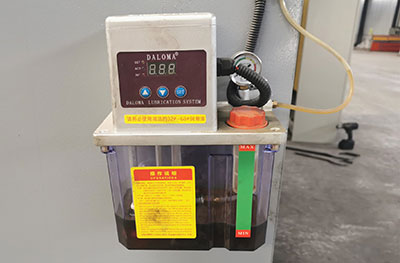

| 3. Automatic oil lubrication system. | 4. Equipped with steel foundation, can put and work stable. |
 |
 |
| 5. Raw material can be galvanized steel, aluminum steel, iron steel, stainess steel etc. | |
| 6. Different type punching machine can make different mesh with roll/panel. | |
Expanded metal mesh machine Video:
Sales-after service
|
We will provide a full set of installation videos about the expanded metal mesh machine
|
Provide the layout and electrical diagram of the expanded metal mesh machine |
Provide installation instruction and manual for expanded metal mesh machine |
Answer every question online 24 hours a day and talk to professional engineers |
Technical personnel go abroad to install and debug expanded metal mesh machine and train workers |
Equipment maintenance
 |
A.Add oil to the bearing/gear part every week/shift.. B.Clean up the dirt on the equipment in time before working the machine..
|
Certification
Expanded mesh application:
Expanded metal mesh is popular used for construction mesh, protection mesh, decoration mesh, etc.
FAQ
1. What's the delivery time of the machine?
About 40 days after received your deposit.
2. What's the payment terms?
30% T/T in advance, 70% T/T before shipment, or L/C, or cash etc.
3. What's the material of the machine
Raw material can be galvanized steel, aluminum steel, iron steel, stainess steel etc.
4. Can we make two or three mesh opening size on one set machine?
Yes, one set machine can make different mesh opening, just change the punching mold is okay.
5. How long of the guarantee time?
One year since the machine was installed at buyer's factory but within 18 months against B/L date.
