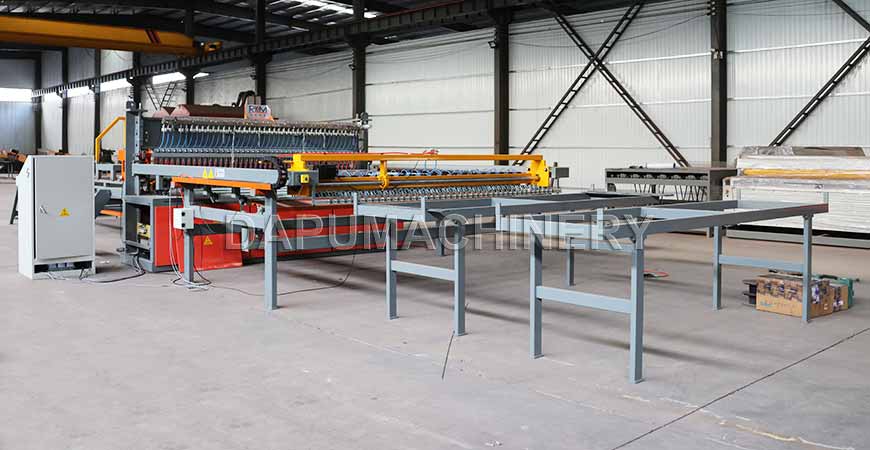

As a type of fence welding machine, anti-climb fence welding machines are mainly used in the safety protection field, thus requiring high welding quality. They not only need strong weld strength but also must meet standards for mesh flatness.

As a professional manufacturer specializing in wire mesh welding equipment, DAPU has achieved remarkable results in the production of anti-climb fence welding machines.

Firstly, combining over 20 years of experience in exporting anti-climb fence welding machines, our sales and R&D departments have conducted in-depth analysis of the application of anti-climb fence in different countries and regions. For example, the anti-climb fence in India is 3.2m wide, 3.05m in South Africa, and the standard specification is 3m wide.

Next, we will focus on the comparative advantages of our economic mechanical 358 fence machine and pneumatic clearvu fence welding machine:

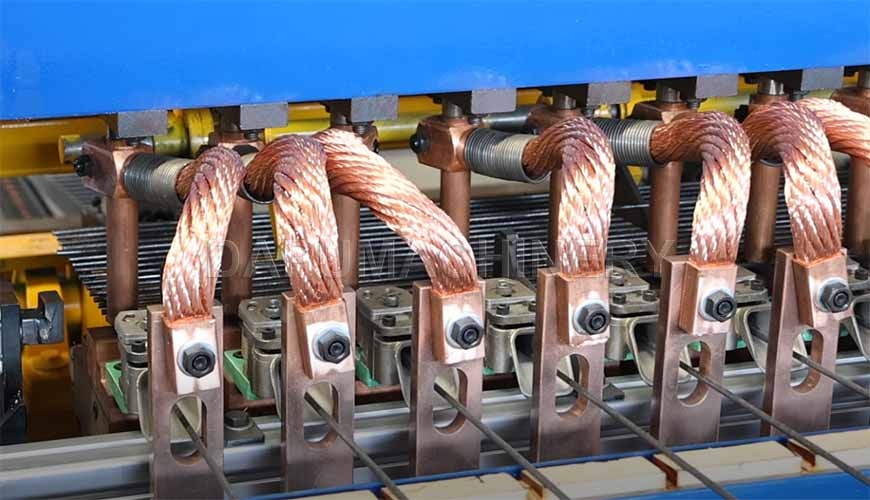

1. Mechanical Anti-Climb Fence Welding Machine: Cost-Effective with Stable Operation

(1) Mechanical control, welding speed: max. 60-75 times/min.
(2) Electrical cabinet configuration: Panasonic servo motors and PLC; Schneider low-voltage equipment and air switches; Delta power supplies and frequency converters, etc.
(3) Feeding part: Longitude and cross wires need to be pre-straightened and pre-cut in advance using a wire straightening and cutting machine; Longitude wires require manual threading, while cross wires are fed via a rotary disk cross wire feeder.
(4) Welding part: Upper and lower welding electrodes are connected to the cast water-cooled transformer using copper sheets and plates, ensuring fast heat conduction.
(5) Mesh pulling part: Mesh pulling is controlled by Panasonic servo motors and planetary reducers for high precision; SMC cylinders control the lifting of hooks for strong stability; The size of the cross wire space can be set on the PLC touch screen.
(6) Auxiliary equipment: Straightening and cutting machine (available in high-speed 120m/min and low-speed 60-70m/min models); Bending machine.

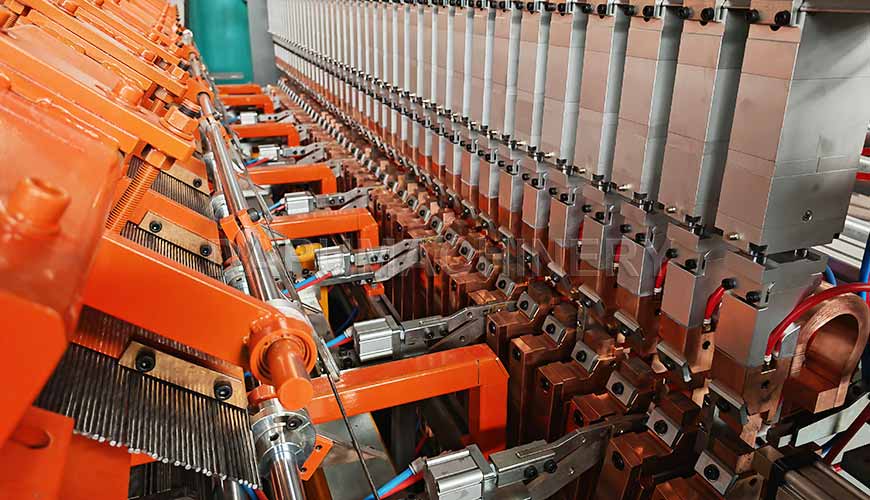

2. Pneumatic Anti-Climb Fence Welding Machine: High-Spec Configuration, You Get What You Pay For

(1) Pneumatic control, welding speed: max. 120 times/min
(2) Electrical cabinet configuration: Panasonic servo motors and PLC; Schneider low-voltage equipment and air switches; Delta power supplies and frequency converters, etc.
(3) Feeding part: Longitude wire feeding is equipped with a feeding trolley controlled by Panasonic servo motors and SMC cylinders, allowing manual threading during welding to save time; Cross wires are equipped with a dedicated feeding hopper.
(4) Welding part: Each welding head is independently controlled by a separate SMC 63 air cylinder to ensure uniform welding pressure at each weld; Each cylinder is also controlled by an independent SMC electromagnetic valve for precision and efficiency; In addition, one cast water-cooled transformer controls 4 welding heads, and the transformer is jointly controlled by a circuit board and Infineon SCR thyristors to ensure stable and efficient output.
(5) Mesh pulling part: Panasonic servo motors control the forward and backward movement of the mesh pulling trolley, and SMC cylinders control the lifting of hooks; German Igus cable drag chains are adopted for good protection and space-saving; J&T pull rack devices ensure accurate pulling distance and low noise.
(6) Auxiliary equipment: Straightening and cutting machine; Industrial water chiller; Air compressor; Bending machine.

If you have a demand for purchasing anti-climb fence welding machines, please contact us. We will provide you with a professional, comprehensive, and most suitable quotation plan based on your specific requirements.
